COB-exact: timeline 1:1 from cormmkr.cob (activatescr/deactivatescr, disassembled with _cob_dis.py). StateChg staged-deploy family: 8 open stages, then the compiled close order — not a reversed activate. Fire/hit/death/smoke scripts are engine-driven or firing-only and not part of this loop.

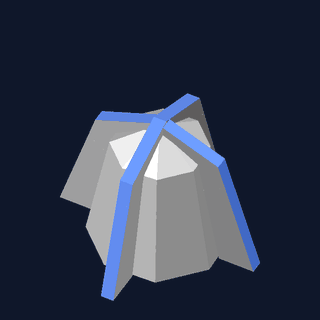

Animation
PNG frames
Frame 0 / 870.00 s
COB timeline (CORMMKR.COB)
- 0.00–0.40 s — Closed rest pose (3DO zero point)
- 0.40–0.67 s — activatescr stage 1: flap3 z-turn 0.0°→-69.3°
- 0.67–0.93 s — activatescr stage 2: flap2 x-turn 0.0°→-4.9°, flap4 x-turn 0.0°→-86.3°
- 0.93–1.20 s — activatescr stage 3: flap2 z-turn 0.0°→69.3°
- 1.20–1.46 s — activatescr stage 4: flap1 x-turn 0.0°→89.4°
- 1.46–1.73 s — activatescr stage 5: topcap y-turn 0.0°→45.0°
- 1.73–2.00 s — activatescr stage 6: topcap y-move 0.00 elmo→-16.05 elmo
- 2.00–2.26 s — activatescr stage 7: topcap z-turn 0.0°→-180.0°
- 2.26–2.79 s — activatescr stage 8: topcap y-move -16.05 elmo→-0.70 elmo
- 3.99–4.26 s — deactivatescr stage 1: topcap y-move -0.70 elmo→-16.05 elmo
- 4.26–4.53 s — deactivatescr stage 2: topcap z-turn -180.0°→0.0°
- 4.53–4.79 s — deactivatescr stage 3: topcap y-move -16.05 elmo→0.00 elmo
- 4.79–5.06 s — deactivatescr stage 4: topcap y-turn 45.0°→0.0°
- 5.06–5.32 s — deactivatescr stage 5: flap1 x-turn 89.4°→0.0°
- 5.32–5.59 s — deactivatescr stage 6: flap2 z-turn 69.3°→0.0°
- 5.59–5.86 s — deactivatescr stage 7: flap2 x-turn -4.9°→0.0°, flap4 x-turn -86.3°→0.0°
- 5.86–6.39 s — deactivatescr stage 8: flap3 z-turn -69.3°→0.0°
- 6.39–6.99 s — closed again — loop restarts (fire/hit/death scripts are engine-driven, not in this loop)
Every stage duration equals its COB sleep exactly; values are raw COB units (turns: BAM 65536 = 360°, moves: elmo × 163840). Renderer conversions follow the proven family conventions (_cob_anim.py).
