COB-exact: timeline 1:1 from CORSILO.COB (activatescr/deactivatescr, disassembled with _cob_dis.py; the outer scripts are cross-checked against the shipped CORSILO.BOS). The launch itself (FirePrimary hides the missile) and the engine-driven RestoreAfterDelay/SetMaxReloadTime close are not part of this loop.

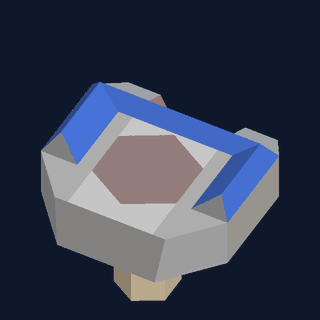

Animation
PNG frames
Frame 0 / 1220.00 s
COB timeline (CORSILO.COB)

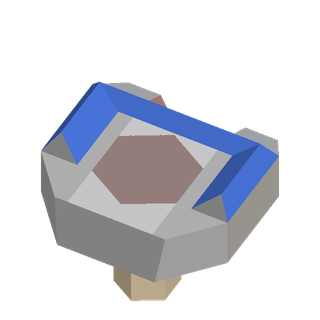

- 0.00–0.40 s — closed rest pose (hatches shut, collar + petals + launch pad + missile stowed inside the base)
- 0.40–1.34 s —
activatescrstage 1: doora1/doora2 x → ±4.5 elmo (hatches slide apart) - 1.34–2.14 s — stage 2: collar y → +5.35 elmo (the collar lifts the petal cluster, launch pad and missile)
- 2.14–2.74 s — stage 3: petals open — doorb5 z → +89.4°, doorb6 z → −90°, sub-petals doorb1–4 x → ~±180° (all six in one 594 ms stage)
- 2.74–4.36 s — stage 4: lnchpad y → +14.4 elmo (launch pad and missile rise out of the collar)
- 5.56–7.30 s —
deactivatescrstage 1: lnchpad y → 0 (pad retracts into the collar) — the compiled close order, not a reversed activate - 7.30–7.77 s — stage 2: petals fold back to 0
- 7.77–8.61 s — stage 3: collar y → 0 (collar sinks into the base)
- 8.61–9.23 s — stage 4: doora1/doora2 x → 0 (hatches close)
Stage durations equal their COB sleep values exactly (941/802/594/1591 ms open, 1746/469/836/576 ms close). The 1-unit collar y/doorb5 y/doorb6 y "anim variable" micro-moves (speeds 1–3) are kept literal and overrun their stage windows by design — they are below 0.0001 elmo and invisible.
